| Specification | Details |
|---|---|
| Overall Dimensions | 2100 mm (L) × 910 mm (W) |
| Bed Type | 4 Section Manual |
| Backrest Adjustment | 0° to 75° |
| Knee Rest Adjustment | 0° to 45° |
| Height Adjustment | 500 mm to 750 mm |
| Frame Material | Mild Steel |
| Frame Thickness | 2 mm |
| Top Platform | CRCA Sheet (4 Section) |
| Coating | Epoxy Powder (70–80 micron) |
| Side Rails | Aluminium Collapsible / ABS |
| Castor Wheels | 125 mm with Brakes |
| IV Rod | Yes (Both Sides) |
| Manual | Crank Rod Handle System |
| Mattress | Premium Blue 4 Cut |
| Weight Capacity | 220 kg approx |
Connect with Sai Life team for quotation, product availability, dealer support and institutional purchase requirements.

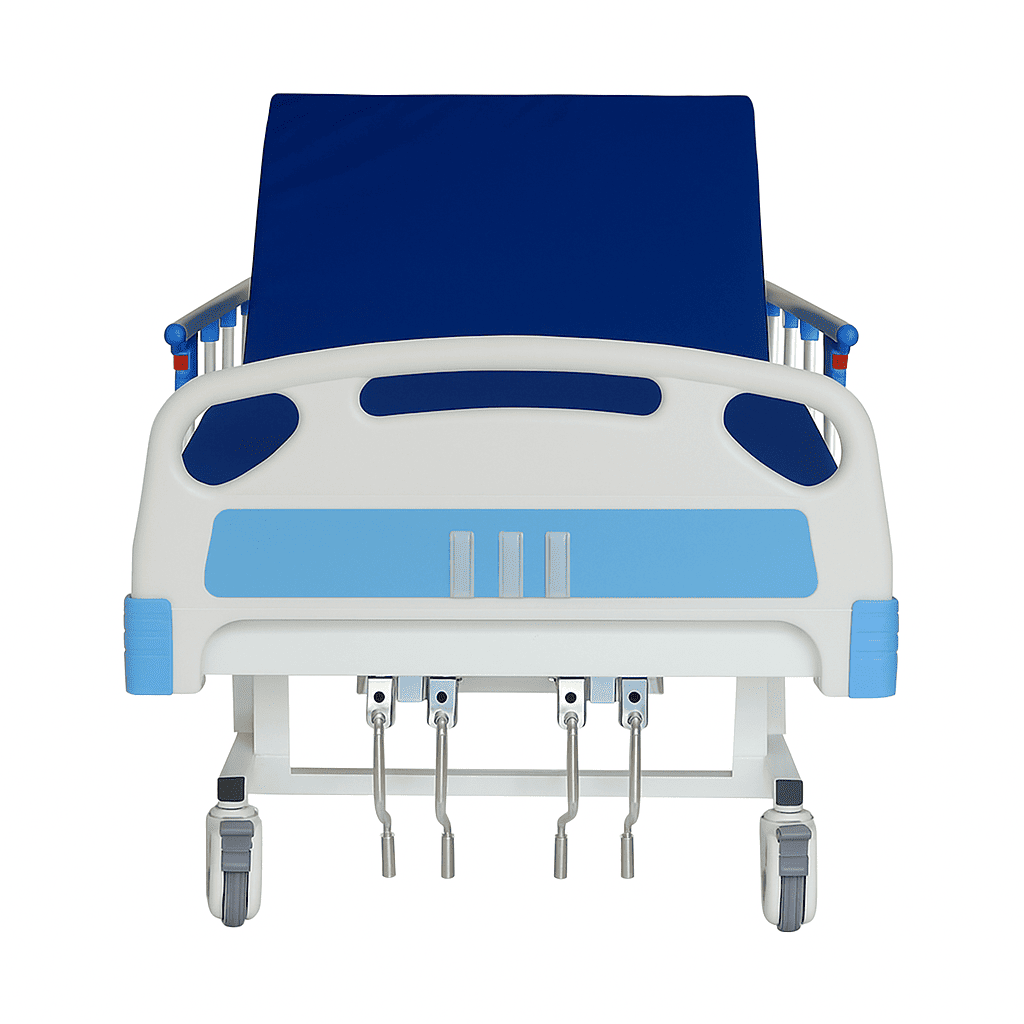

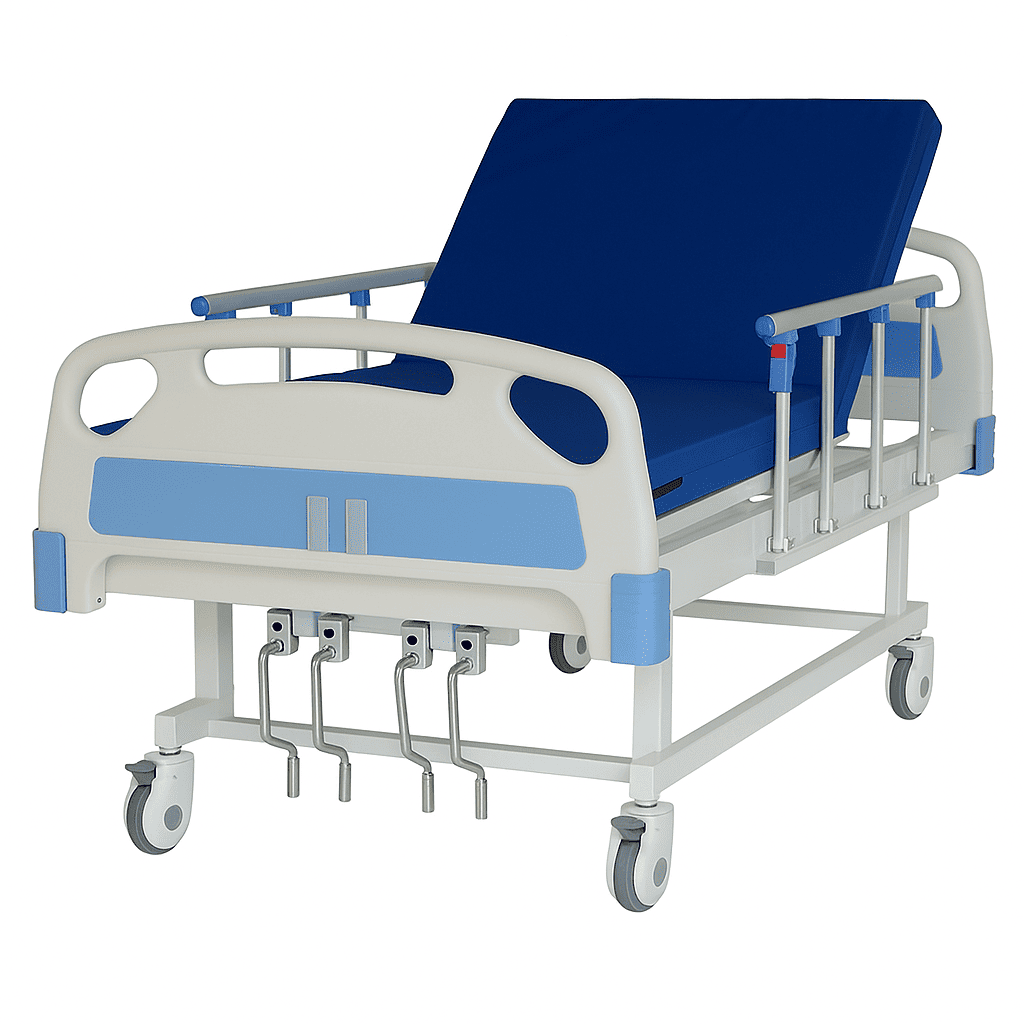

The Three Function Hospital Bed is designed to offer patients superior comfort and caregivers enhanced convenience. Ideal for hospitals, nursing homes, and home care, this bed allows manual adjustments for backrest elevation, leg rest elevation, and bed height, ensuring optimal positioning for recovery and care.
3 Manual Crank Functions:
Backrest elevation
Knee rest elevation
Height adjustment
Durable Construction:
High-quality mild steel frame with epoxy powder coating for corrosion resistance
Patient Safety & Comfort:
Collapsible side rails for added protection
Premium blue mattress included for extra comfort
Mobility & Locking:
Four heavy-duty wheels with brakes for secure movement and positioning
User-Friendly Design:
Smooth crank mechanism for effortless adjustment
Head and foot panels made of ABS for easy cleaning and modern look
| Specification | Details |
|---|---|
| Overall Dimensions | 2100 mm (L) × 910 mm (W) |
| Bed Type | 4 Section Manual |
| Backrest Adjustment | 0° to 75° |
| Knee Rest Adjustment | 0° to 45° |
| Height Adjustment | 500 mm to 750 mm |
| Frame Material | Mild Steel |
| Frame Thickness | 2 mm |
| Top Platform | CRCA Sheet (4 Section) |
| Coating | Epoxy Powder (70–80 micron) |
| Side Rails | Aluminium Collapsible / ABS |
| Castor Wheels | 125 mm with Brakes |
| IV Rod | Yes (Both Sides) |
| Manual | Crank Rod Handle System |
| Mattress | Premium Blue 4 Cut |
| Weight Capacity | 220 kg approx |
Find answers to the most common questions about Three Function Hospital Bed in a simple and easy-to-understand format.
A 3 function manual hospital bed allows adjustment of the backrest, knee rest, height using manual crank handles.
Yes, this bed is ideal for home care, hospitals, and nursing homes, especially where power supply may be limited.
The bed supports up to 220 kg, making it suitable for most patients.
Yes, it includes a premium blue 4-cut mattress for better comfort and support.
The height can be adjusted from 500 mm to 750 mm using a manual crank mechanism.
